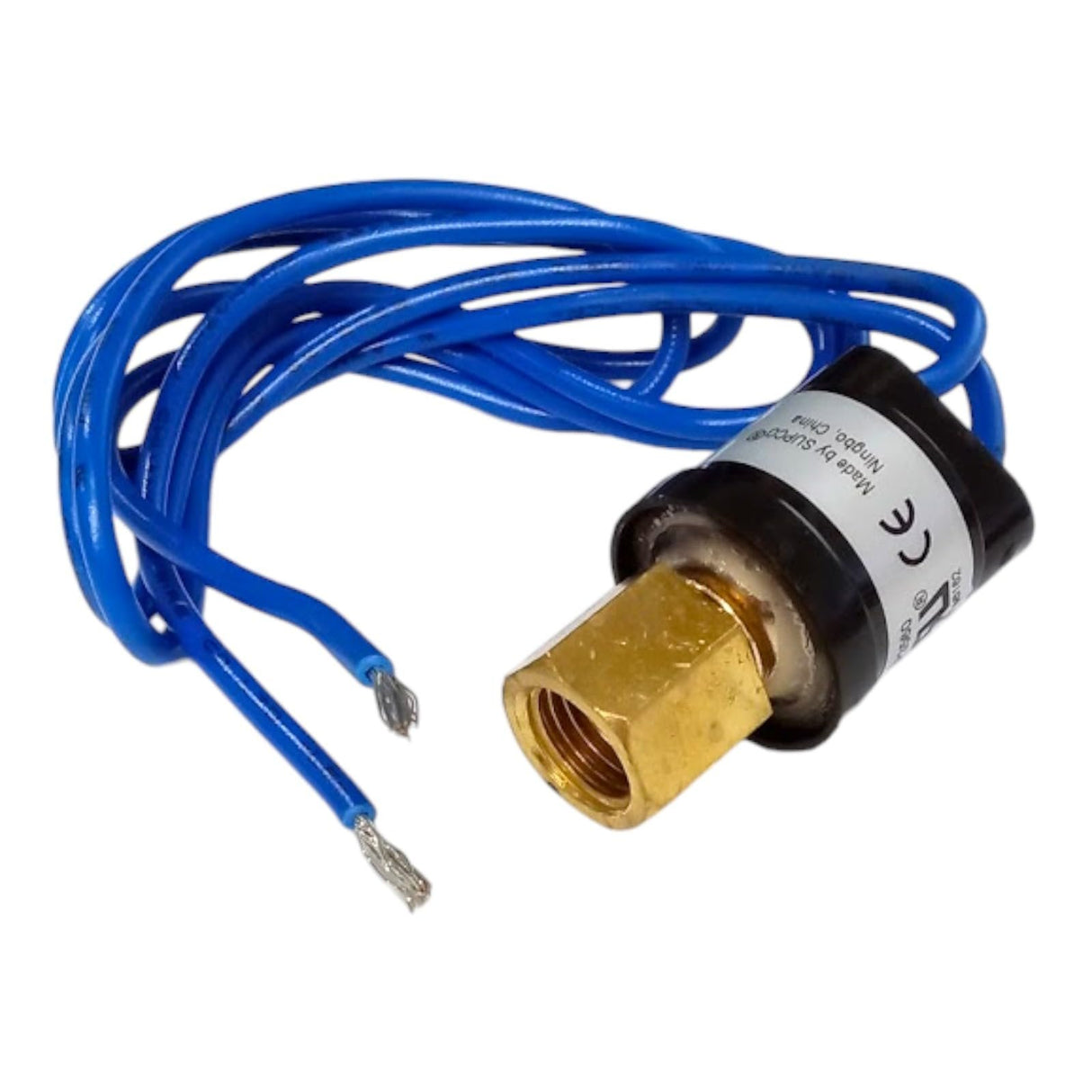

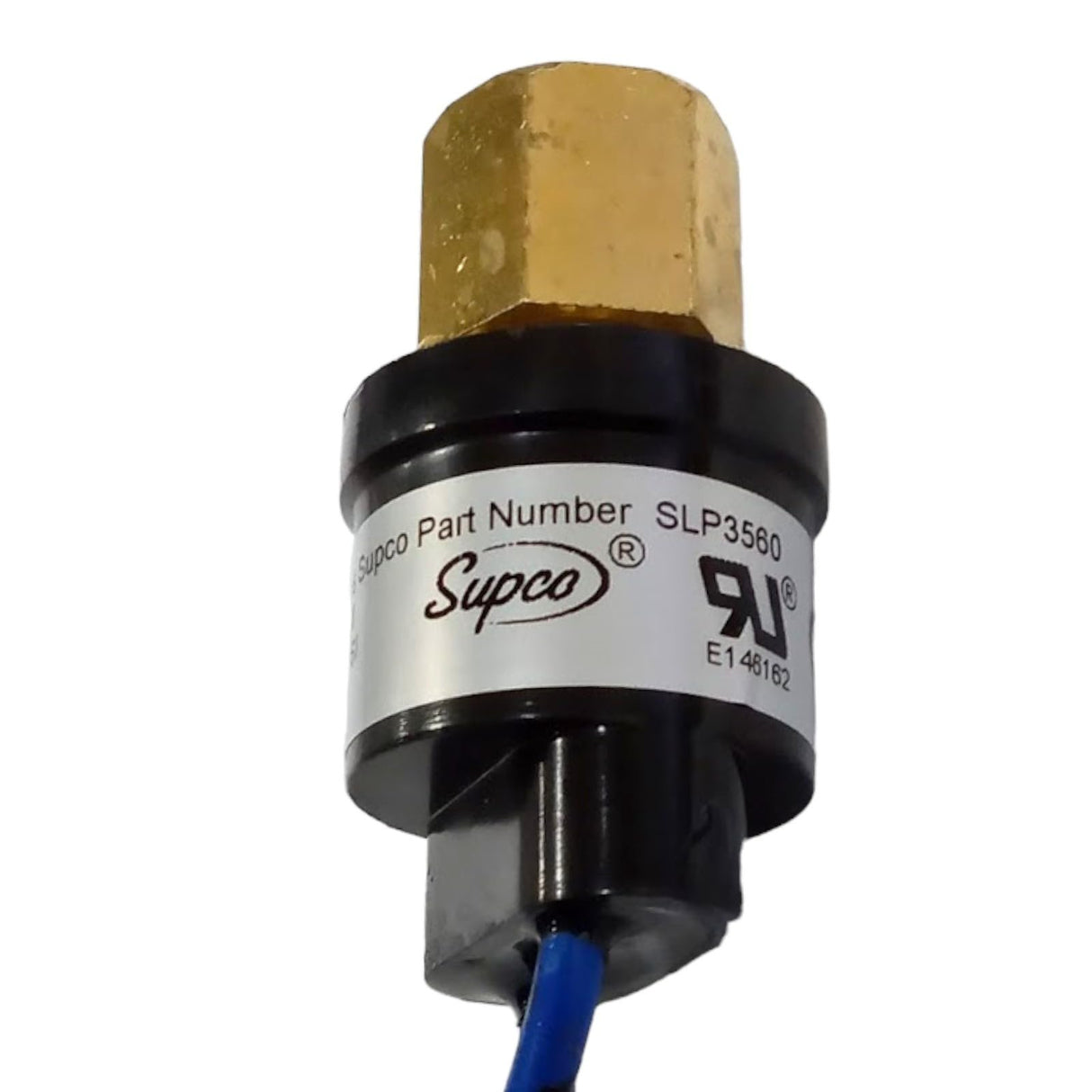

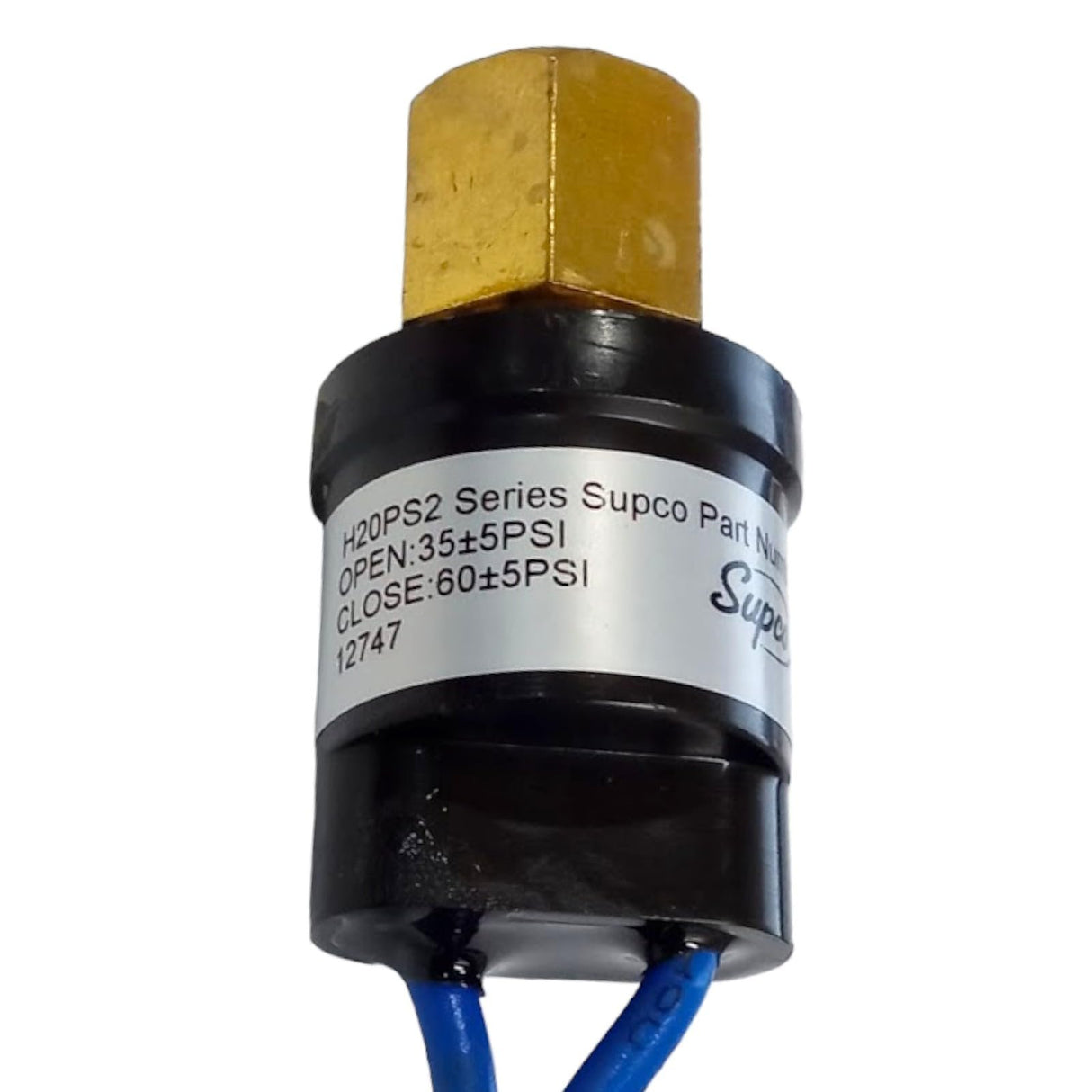

Supco SLP3560 Low Pressure Switch Open: 35 PSI Close: 60 PSI HVAC Refrigeration

Supco Part number SLP3560 Open: 35 PSI Close: 60 PSI Low pressure switch opens on pressure fall High precision controls at economical prices. Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants Features:

• ¼" SAE 45° female flare fitting with valve core depressor
• Low pressure switch opens on pressure fall
• Life at rated load: 100,000 cycles
• Automatic Reset
• Rated Voltage 24/120/240 VAC @ 50/60 Hz
• Snap acting stainless steel hermetically sealed sensor
• Wire is 18 AWG, 18" long
• Small size and light weight for direct mounting
• Excellent set point repeatability/stability

Specifications:

• -31°F to 149°F (-35°C to 65°C)
• UL Recognized, CE
• Max Pressure 700PSI

Supco Part number SLP3560 Open: 35 PSI Close: 60 PSI Low pressure switch opens on pressure fall
