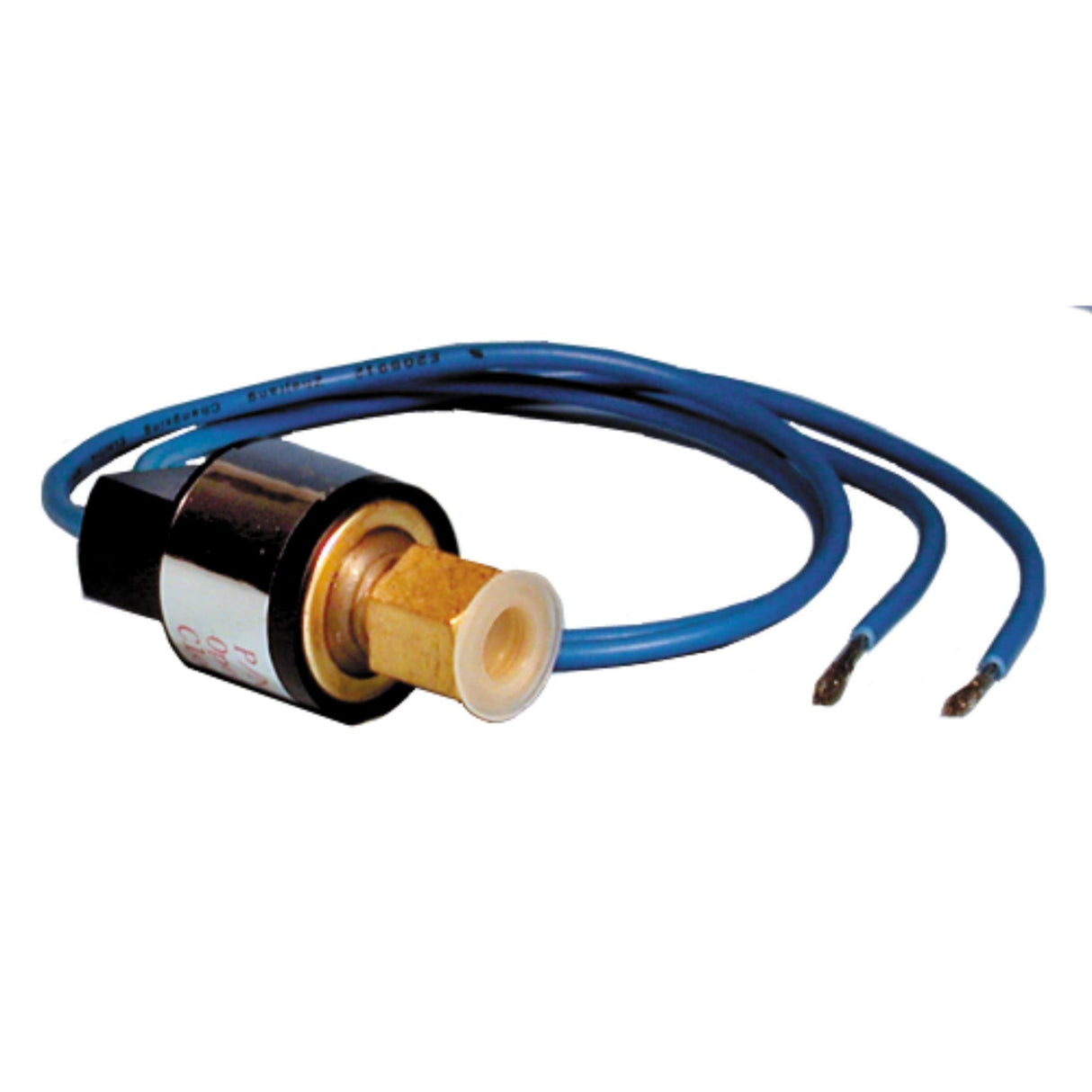

Supco SLP0520 PRESSURE SWITCH

Features High Pressure SPST open on pressure rise Low Pressure SPST open on pressure fall Condenser Fan Cycling SPST open on pressure rise 1/4” female SAE connection Snap acting stainless steel hermetically sealed sensor (SHP, SLP & SFC) Small size and light weight for direct mounting Excellent set point repeatability / stability Pressure Range: 0 to 650 PSI Burst Pressure: 5000 PSI Life @ Rated Load: 100,000 cycles Rated Voltage: 50 / 60 Hz, 24 / 120 / 240 Volts (6 RLA, 36 LRA) Temperatures: Ambient 20?F to 176?F (-30?C to 80?C). Fluid 60?F to 250?F (-50?C to 120?C). Applications Refrigeration systems Air conditioning systems Heat pump systems Cross Reference: PS80-K2-F0305-020-005, 33329, PS-LP05-20, MPL-7001, 3101-001, P100AC-1CMavrik - 421813 - 5 - 20 PSI Low Pressure Switch5 - 20 PSI Low Pressure SwitchMavrik421813
