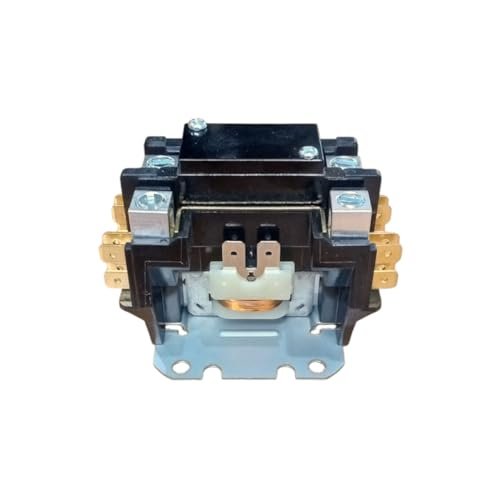

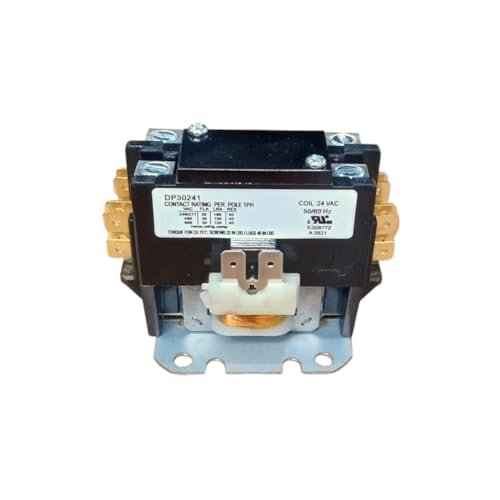

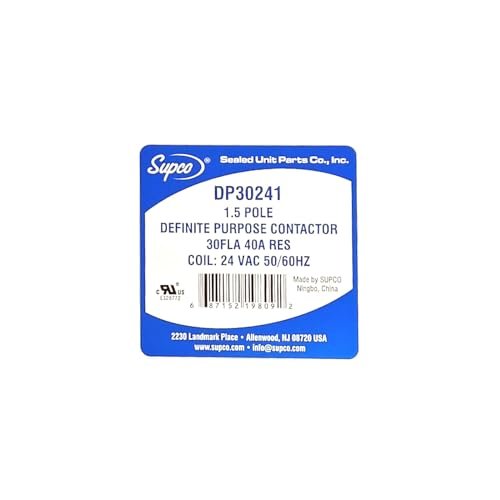

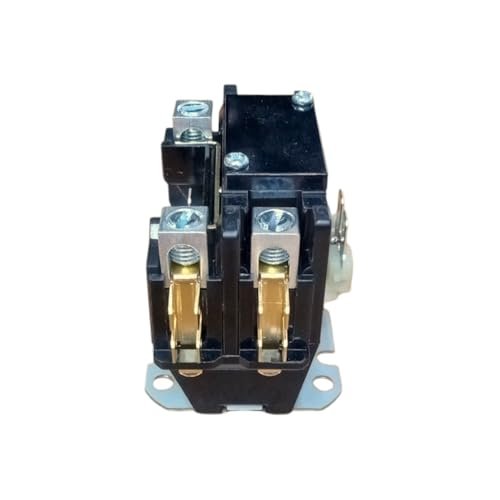

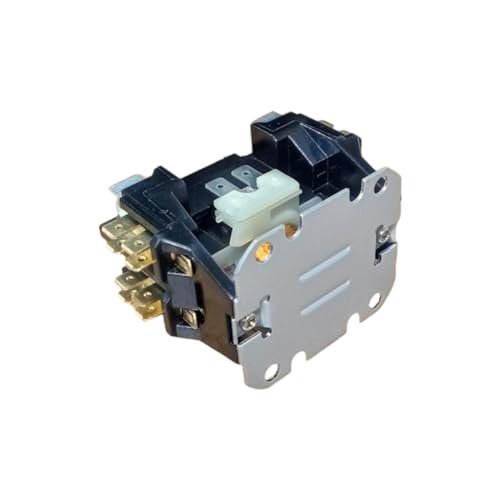

Supco DP30241 Contactor 30 FLA 40 RLA 24 Volts 1.5 Pole

Supco Contactor part number DP30241Supco contactors are designed for use in HVAC&R systems. Compact universal design allows replacement of the most common brands. Low drop out voltage makes them ideal for any air conditioning, heating and refrigeration applications.30 FLA, 40 RLA24V Coil1.5 PoleFeatures/Benefits

• Silver cadmium oxide contacts
• Interchangeable mounting with many competitive contactors
• Space saving dimensions allow for smaller panels and more wiring room
• CSA approved
• UL approved

Specifications

• Termination Torque: 22-inch pounds
• Termination: 10-32 Screws
• Full load amps: 30 FLA
• Coil voltage: 24V
• Number of poles: 1.5 Pole
• Resistive Load Amperage (RLA): 40A
• Temperature range: -40 to 150 degrees F (-40 to 65 C)

Replaces

• Furnas: 45EG10AJA
• Cutler Hammer: 4143, C25CNB130T
• Arrow Hart: C301NU10
• GE: CR353CD3AH1, CR453CC3HAA

Supco Contactor part number DP3024130 FLA, 40 RLA, 24 Volts, 1.5 PoleDesigned for use in HVAC&R systemsCompact universal designInterchangeable mounting
