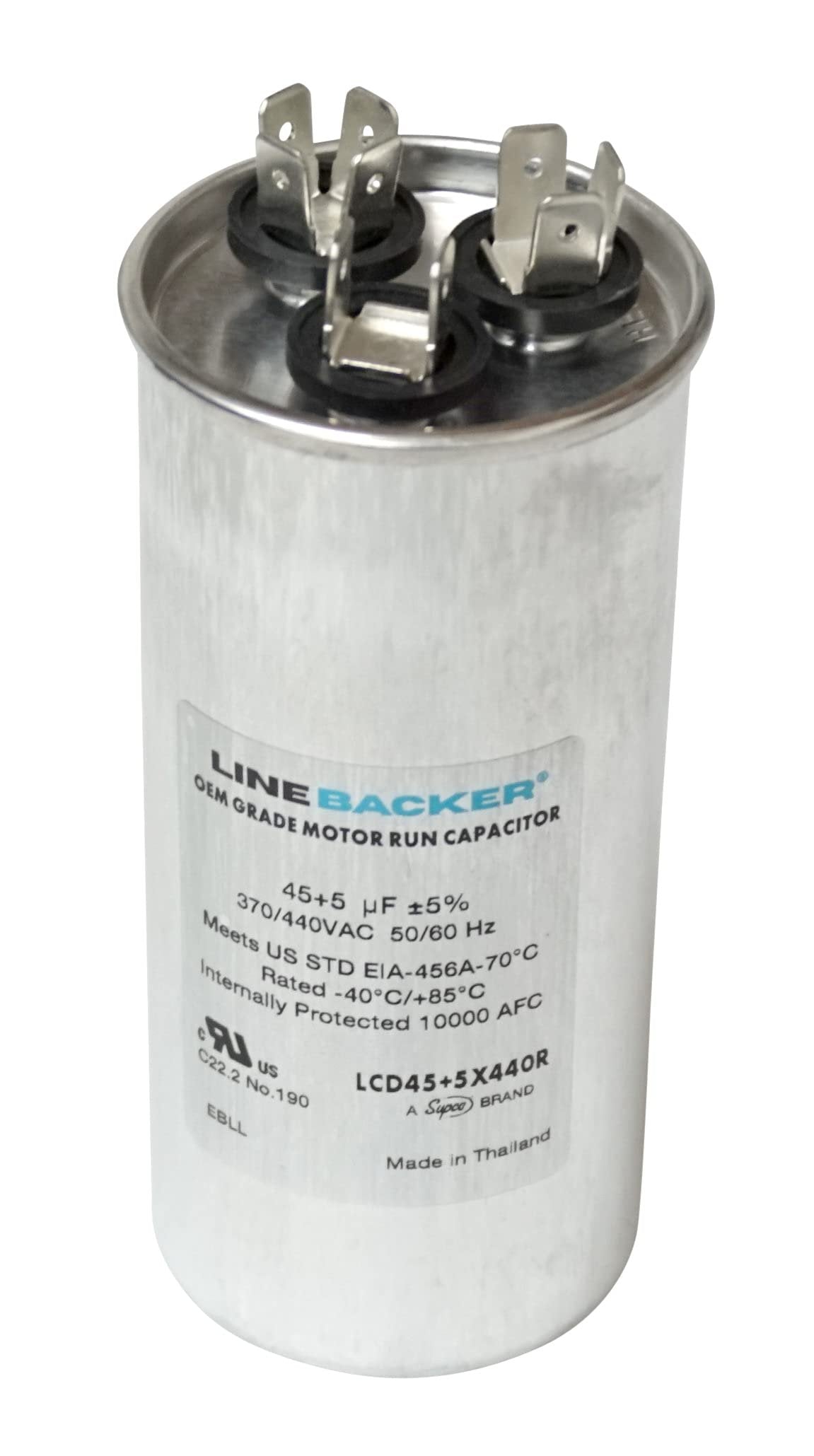

Supco Capacitor Round Dual Run 45 + 5 uf 370/440 Volts for HVAC Motors Compressors LCD45+5X440R Linebacker

Supco Linebacker Part Number LCD45+5X440R Round  Dual Motor Run Capacitor 45 + 5 Mfd uf

Linebacker Motor Run Capacitors are built for longevity and performance. Engineered by an ISO certified manufacture with over twenty years experience in OEM capacitor fabrication. Linebacker capacitors come off the same production line as the OEM, and are 100% in-line production tested to the same rigorous international standards. Linebacker capacitors are manufactured with thick polypropylene foil to handle increased operating temperatures.

Specifications

• Capacitor Voltage: 370/440VAC
• Style: Round
• Capacitor (MFD): 45 + 5 Mfd uf
• Dimensions: 2 in dia x 4.3 in
• Tolerance (MFD): + / - 5%
• Operating Temperature: -40 to 85 degrees F (-40 to 85 C)
• Agency: UL, VDE

Applications

• Air conditioning compressors
• Refrigeration Compressors
• Furnace blower motors
• Condenser fan motors

Features/Benefits

• Built Tough | Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours
• Woks Harder | Life tested to 85 degrees C operating temperature for 10,000 working hours
• Non-PCB-free oil to prevent over-heating
• Protected | 10,000 AFC pressure sensitive short circuit interrupting capability
• Tested | Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
• Approved | US and Canada UL approved (C22.3NO.190)

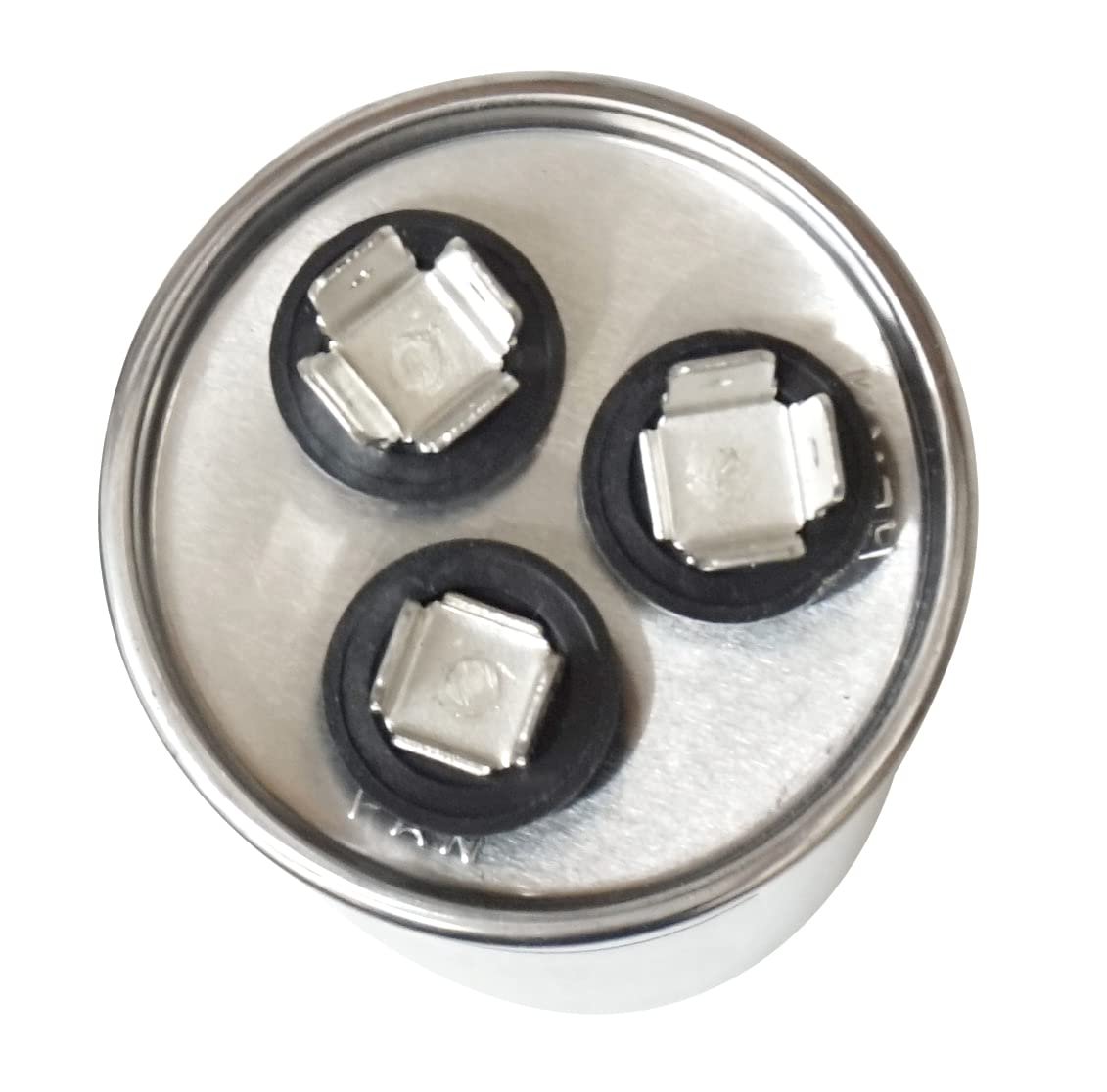

• Quad Blade Quick Connect Terminals

Supco Part Number LCD45+5X440RCapacitor, Round Dual Run, 45 + 5 Mfd ufDimensions: 2 in dia x 4.3 inBuilt Tough | Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours
